3408TA / JGJ2 / 3-stage

Columbia, MS

Product Notes

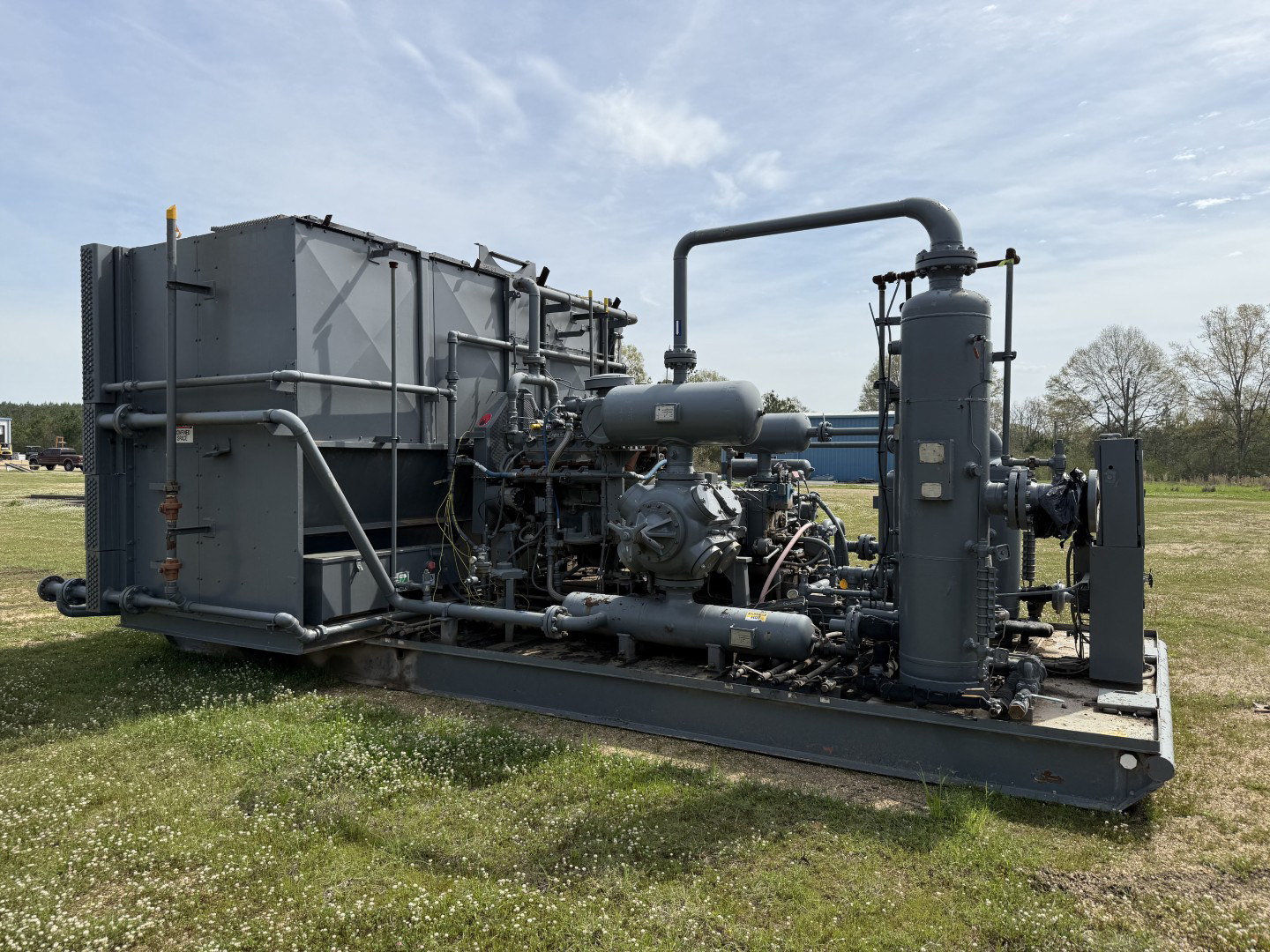

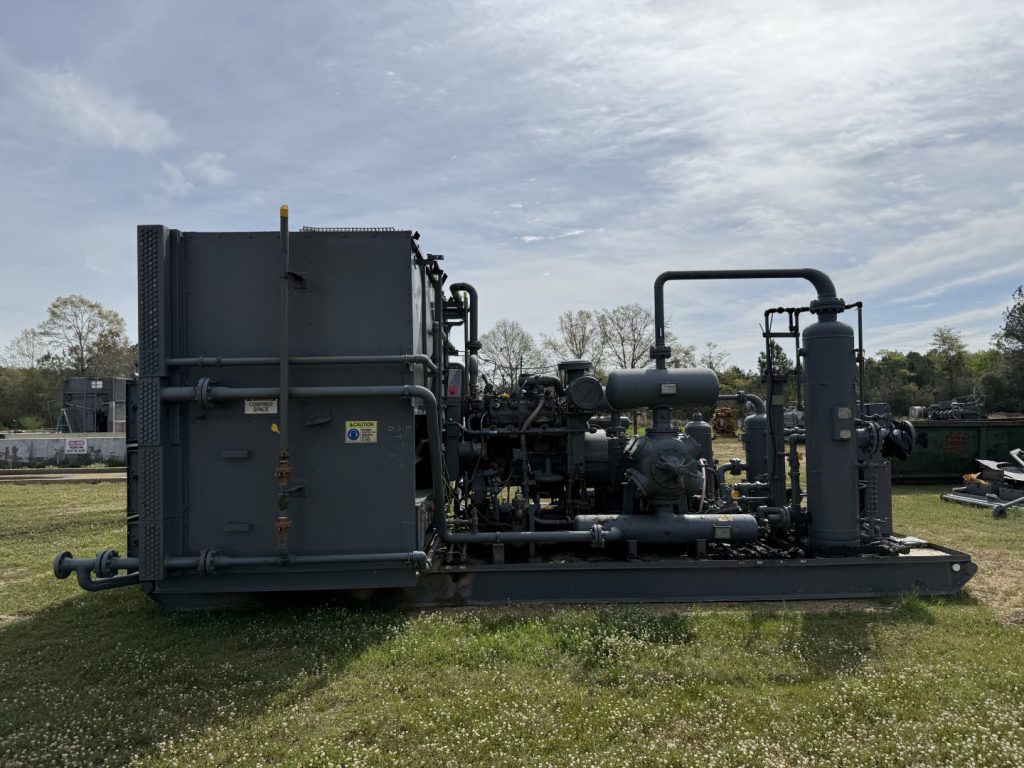

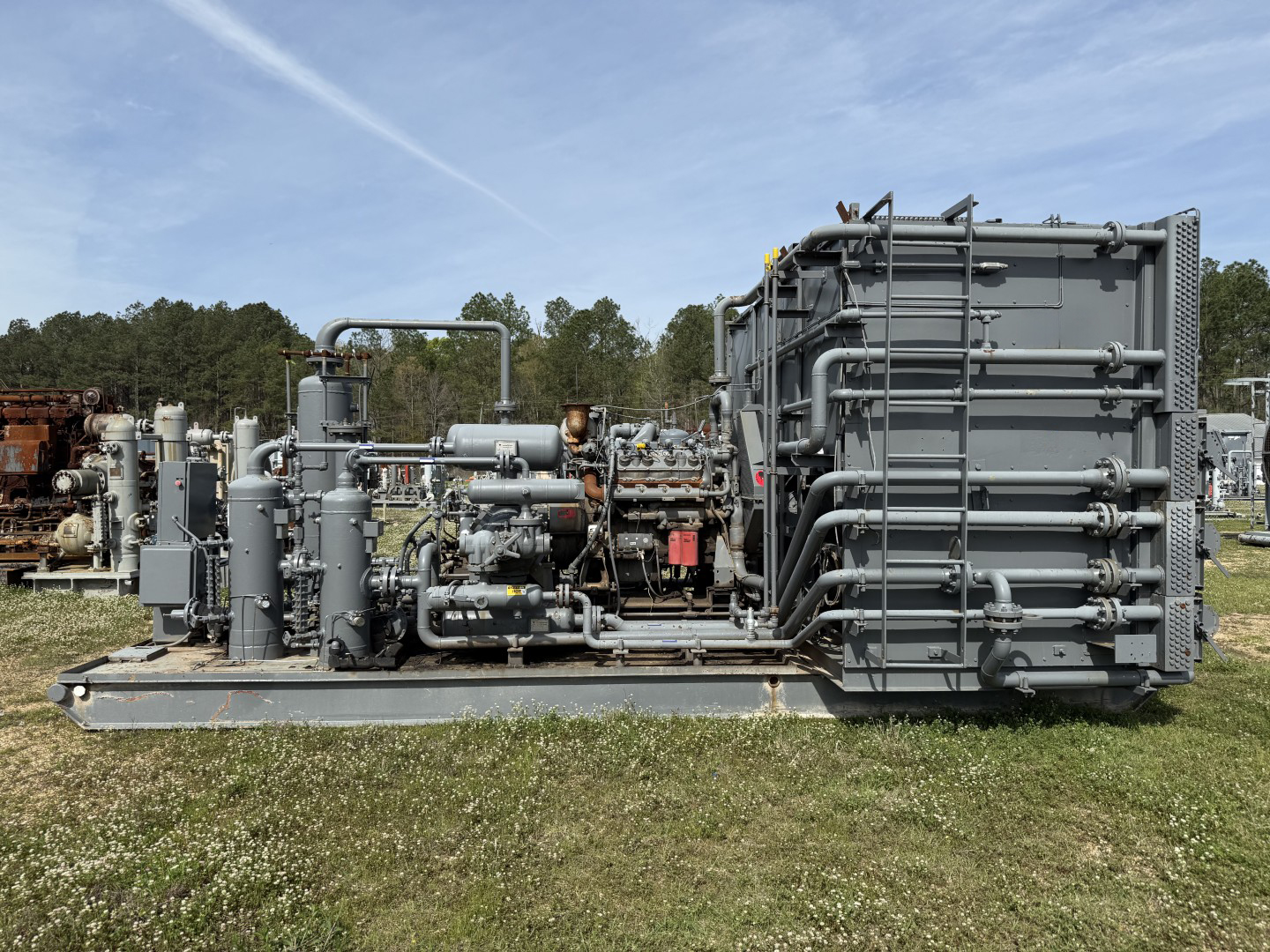

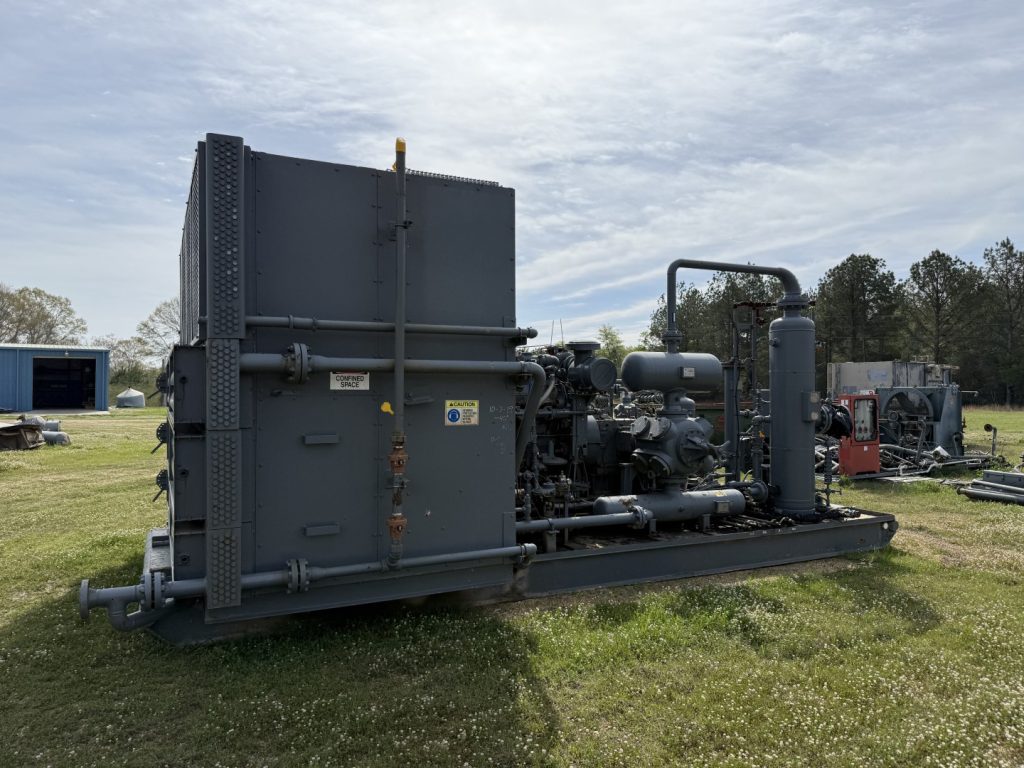

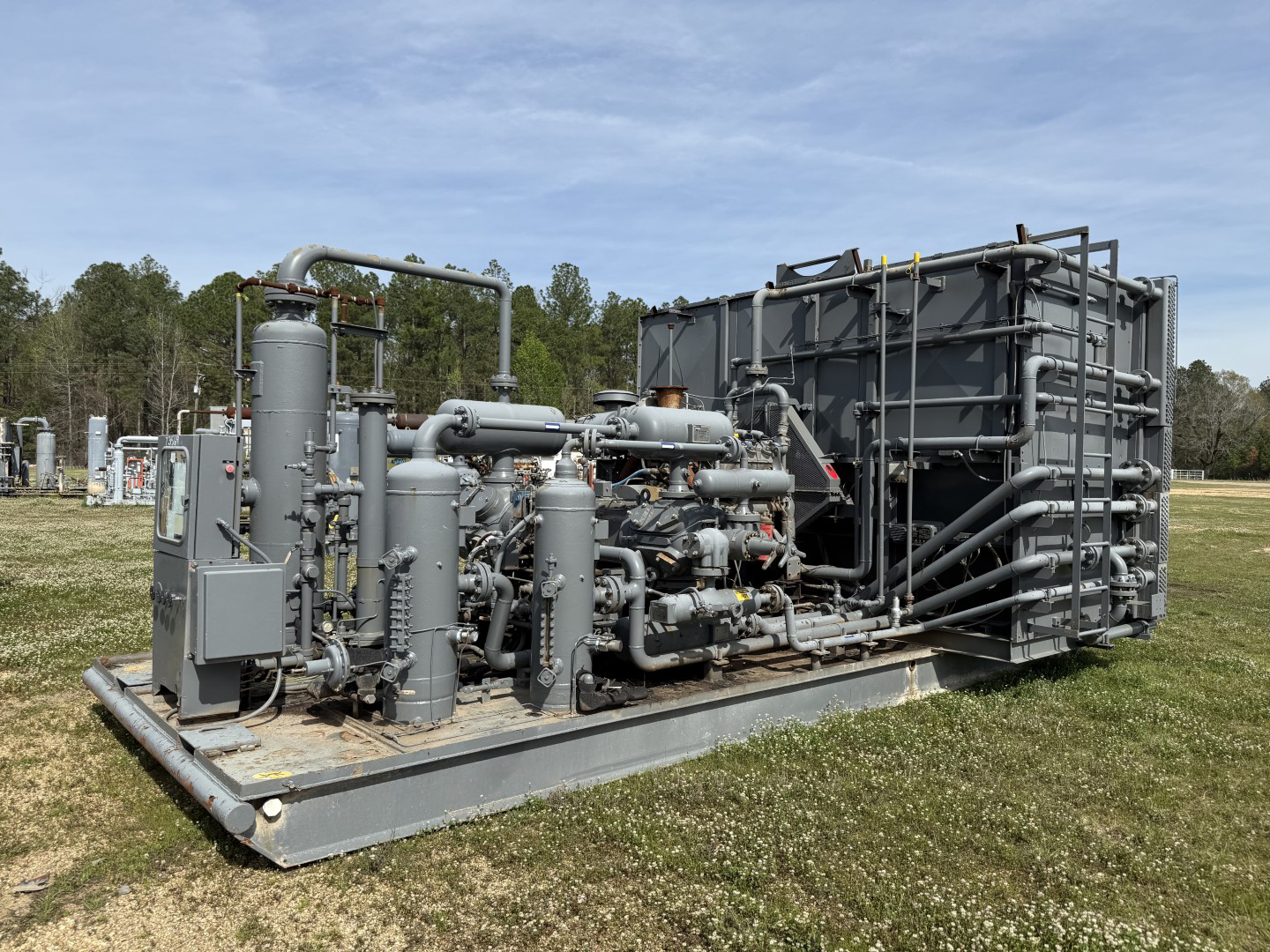

Originally packaged in 1994 by Gemini, the unit was repackaged in 2008. Scrubbers were repaired and new pulsation bottles were added. The engine and compressor both roll smoothly 360 degrees. The unit has been inspected and preserved for storage.

Download Datasheet

Download Photos

Product Details

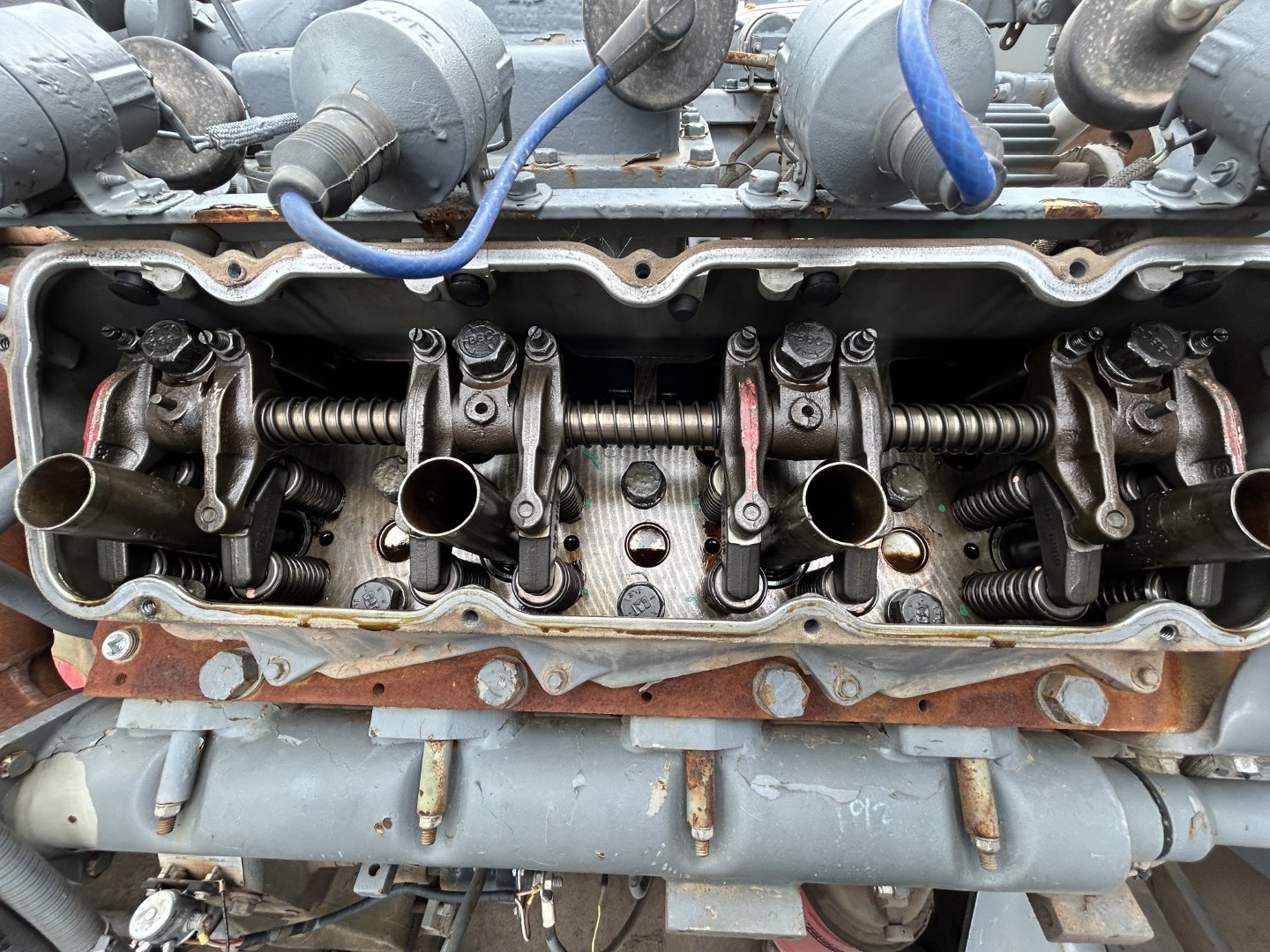

Engine

Caterpillar G3408TA
S/N: 6NB01361
400HP @ 1800 RPM
Rebuilt: 04/14/2015

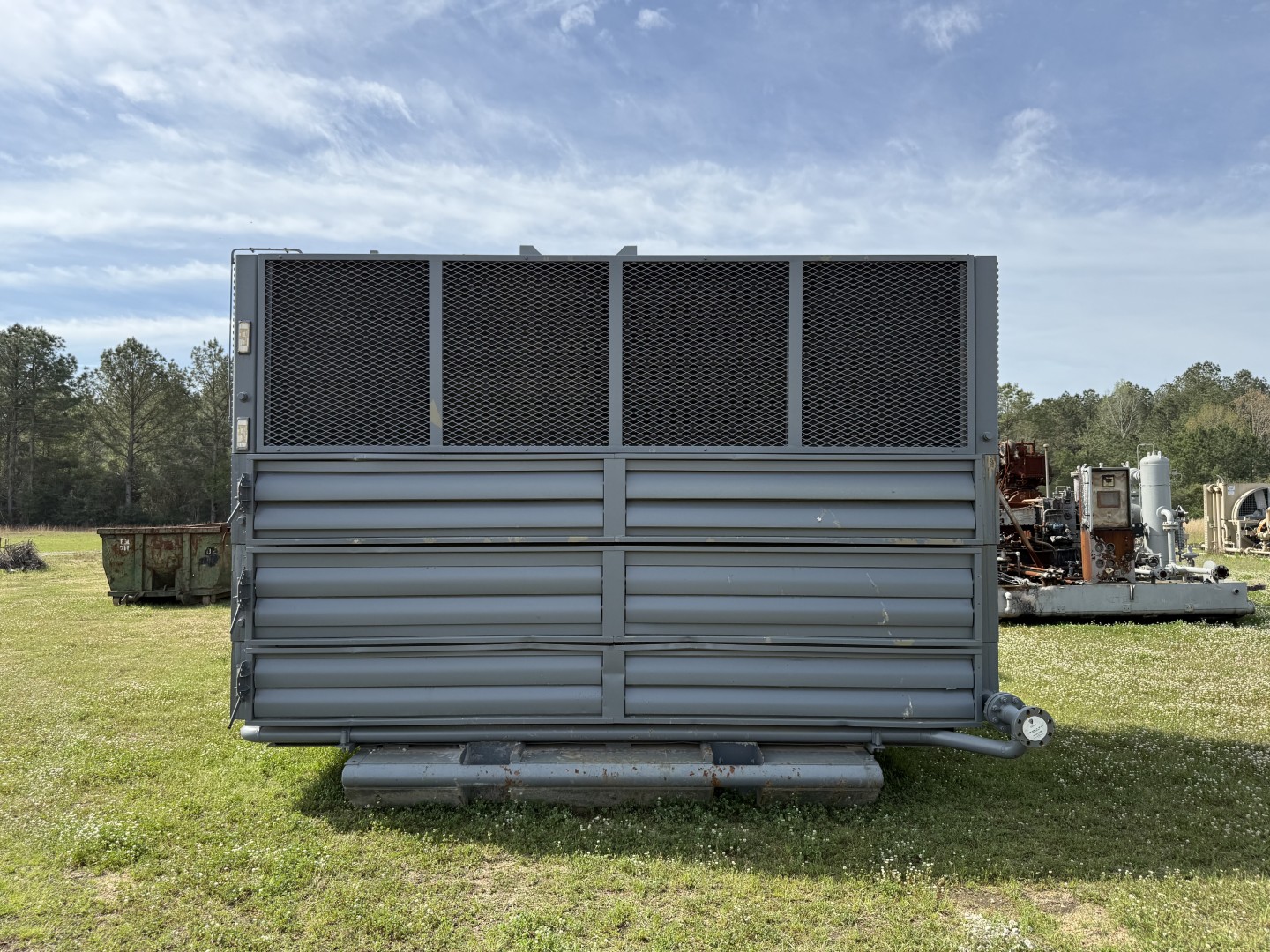

Cooler

Energy Industries
Model J96-1471
S/N: 94128

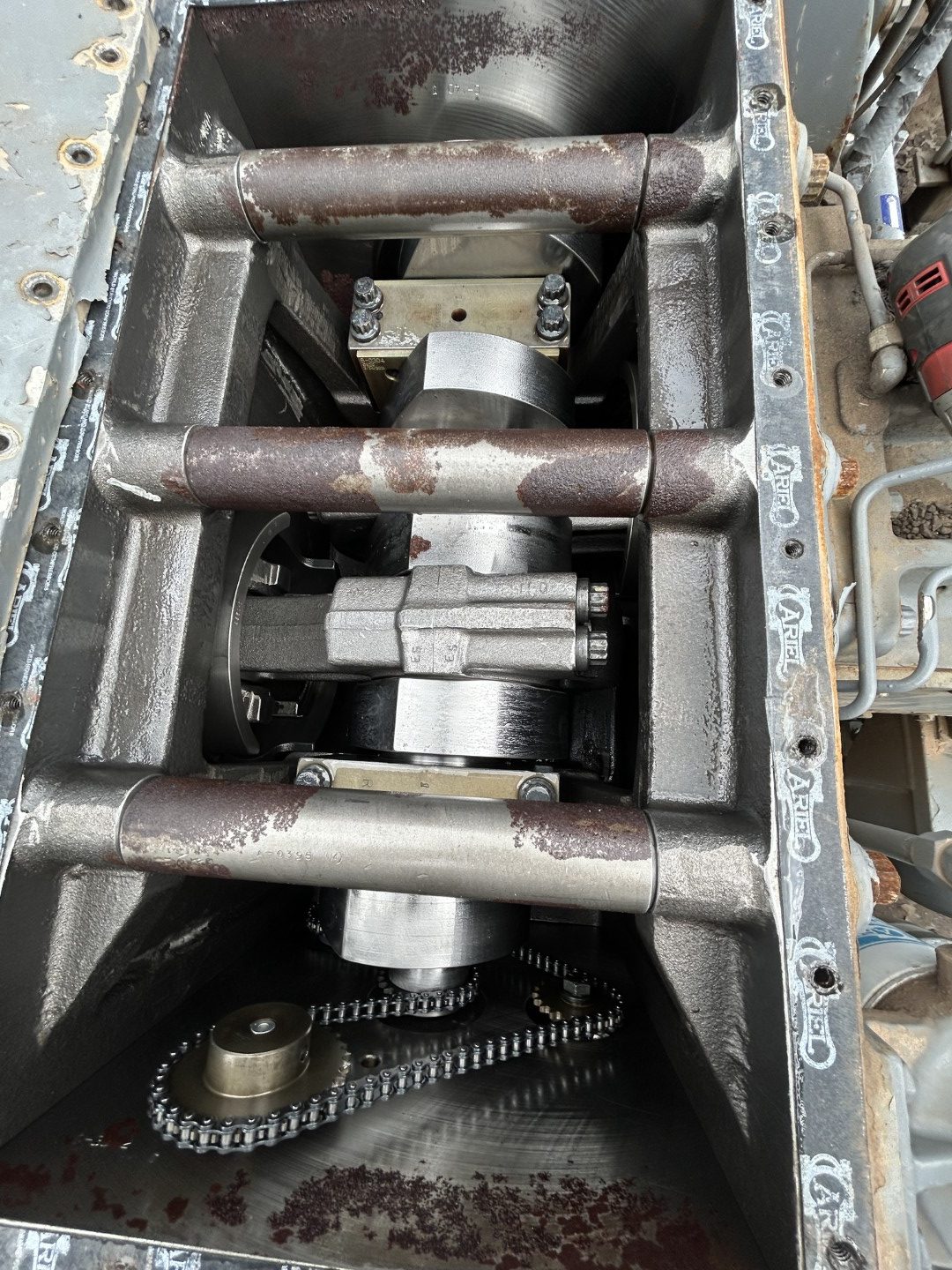

Compressor

Ariel JGJ/2
S/N: F-27509
Mfg: July 2007
R/L: 42,000

Control Panel

Murphy TTD/TDXM
Altronic EPC-100E AFRC

Cylinders

11.5” RJ (S/N:C-87235) 500# w/ VVCP
7.375″ RJ-CE (S/N: C-87236) 845#
3.875” RJ-HE (S/N: C-87237) 2200# w/ VVCP

Scrubber Information

	Diameter	MAWP	S/N	Manufacturer
Suction	20″	500#	10121	Gemini
1st Interstage	14″	600#	10139	Gemini
2nd Interstage	14″	1200#	10060	Gemini
