3406NA / H302 / 3-Stage
Columbia, MS
Product Notes

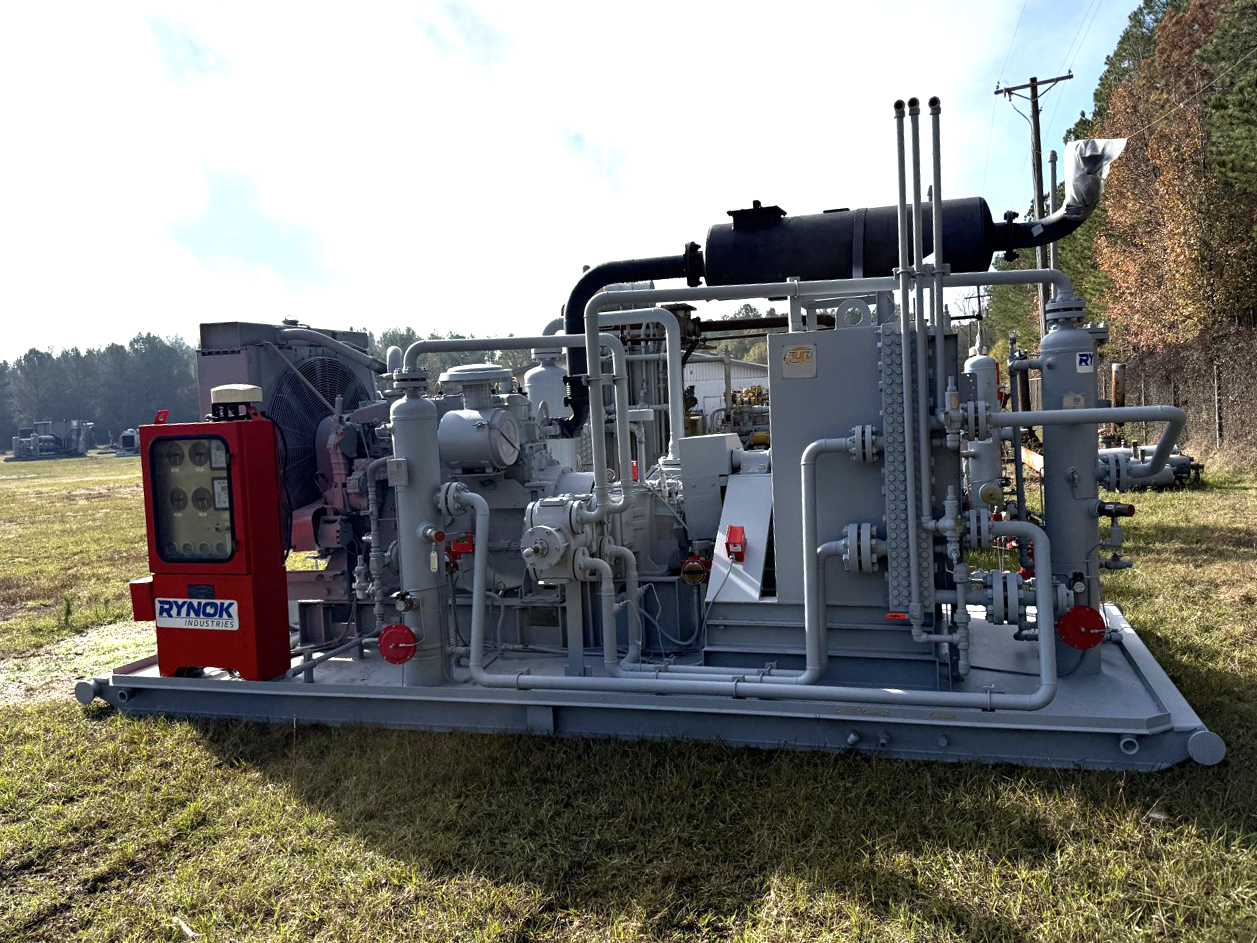

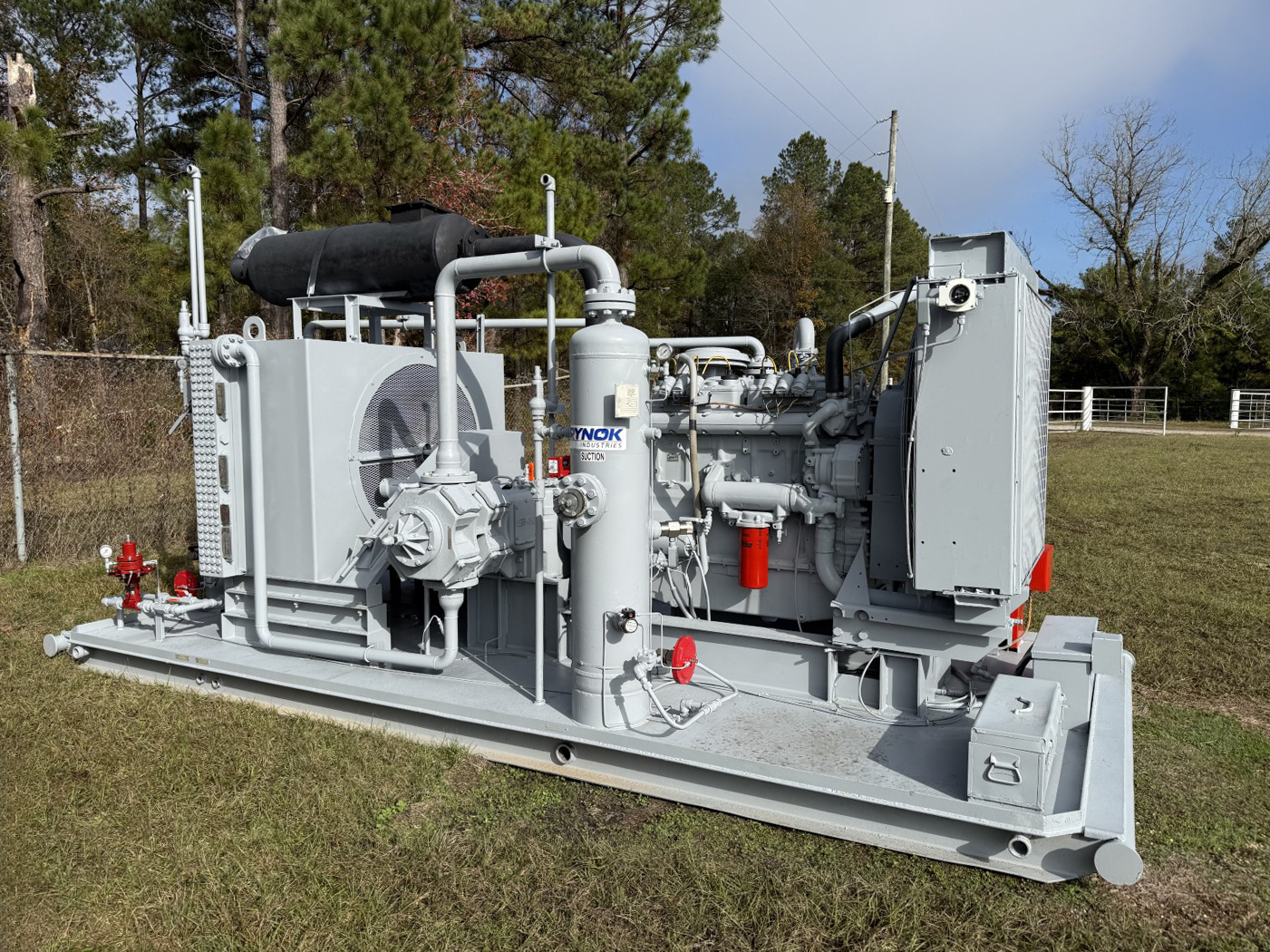

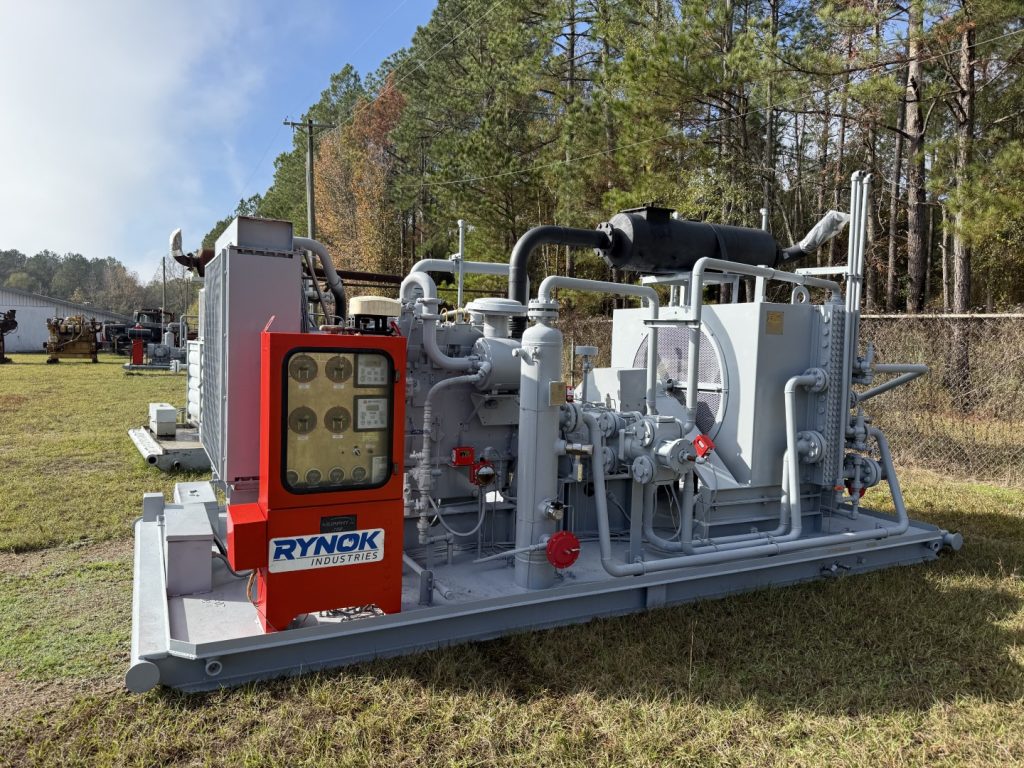

This unit was packaged by McClung in 2007, and received a complete zer0-hour overhaul in June 2025. The overhaul included engine rebuild, compressor and cylinder rebuild, cooler retube and uprate, all new end devices, new shipboard cable wiring, new Kimray makeup valve, and wash and paint. This unit has been tested for several hours, preserved, and is ready to go to work.
Product Details
Engine
Caterpillar G3406NA
215HP @ 1800RPM
S/N: 4FD00716
Rebuilt: 06/2025
Cooler
East Texas Radiator
S/N: ETR1160
Mfg: 2007
Compressor
GE H302
S/N: 300023505
Mfg: 06/05/2007
R/L: 20,000
Control Panel
Murphy TTD/TDXM
Cylinders
8.0″ 300# (S/N: 046071-1-4) w/ VVCP
5.5″ 750# (S/N: 54220-2-K044 w/ VVCP
3.5″ 1250# (S/N: 54797-1-H066)
Scrubber Information
| Diameter | MAWP | S/N | Year | Mfg | |
| Suction | 12″ | 720# | 11336 | 2007 | Winston F2S |
| 1st Interstage | 8″ | 1200# | 11347 | 2007 | Winston F2S |
| 2nd Interstage | 8″ | 1200# | 11330 | 2007 | Winston F2S |
Cooler Information
| MAWP | Temp | S/N | Mfg | |
| IC1 | 1315# | 300 | ETR1160-IC1 | ETR Services |
| IC2 | 1315# | 300 | ETR1160-IC2 | ETR Services |
| AC | 2370# | 350 | ETR1160-AC | ETR Services |
