200HP / JGQ2 / 3-stage
Midland, TX
Product Notes

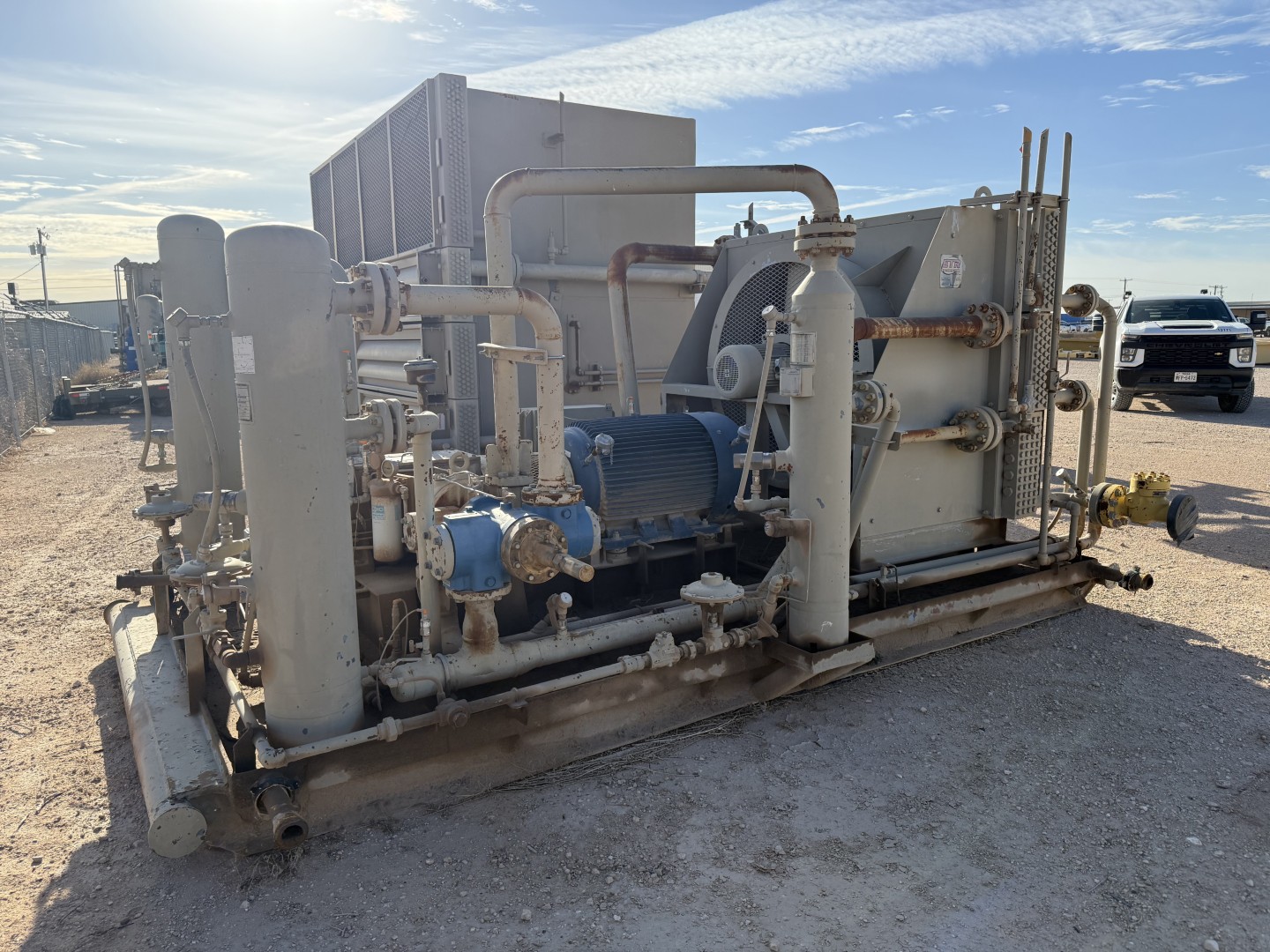

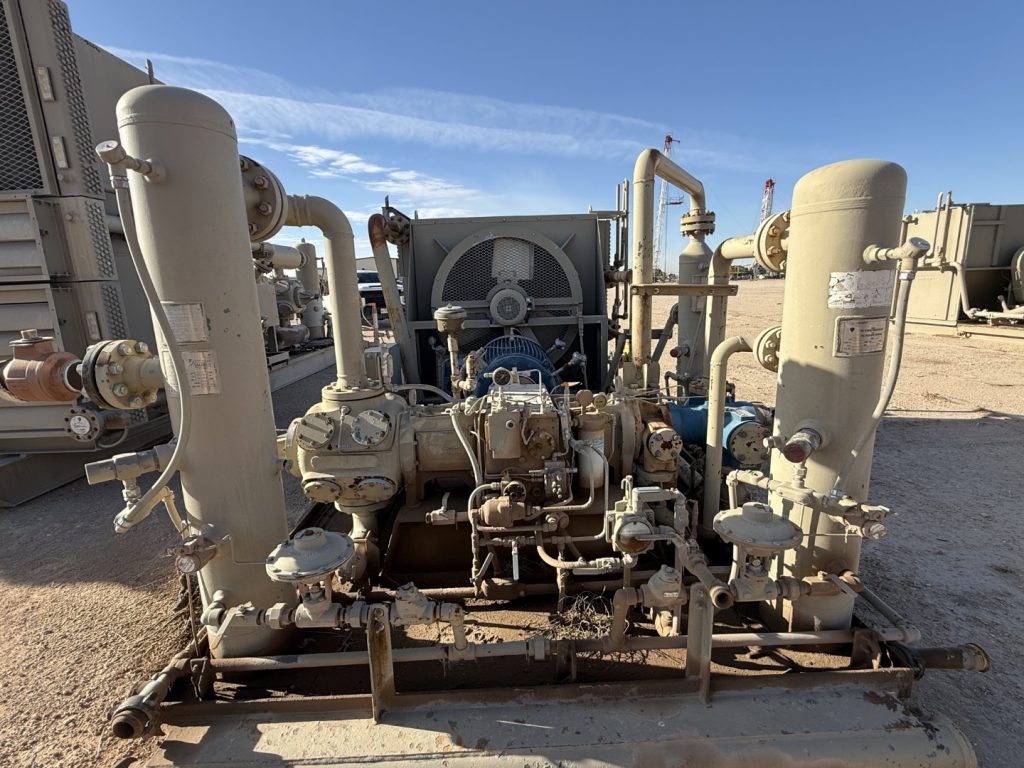

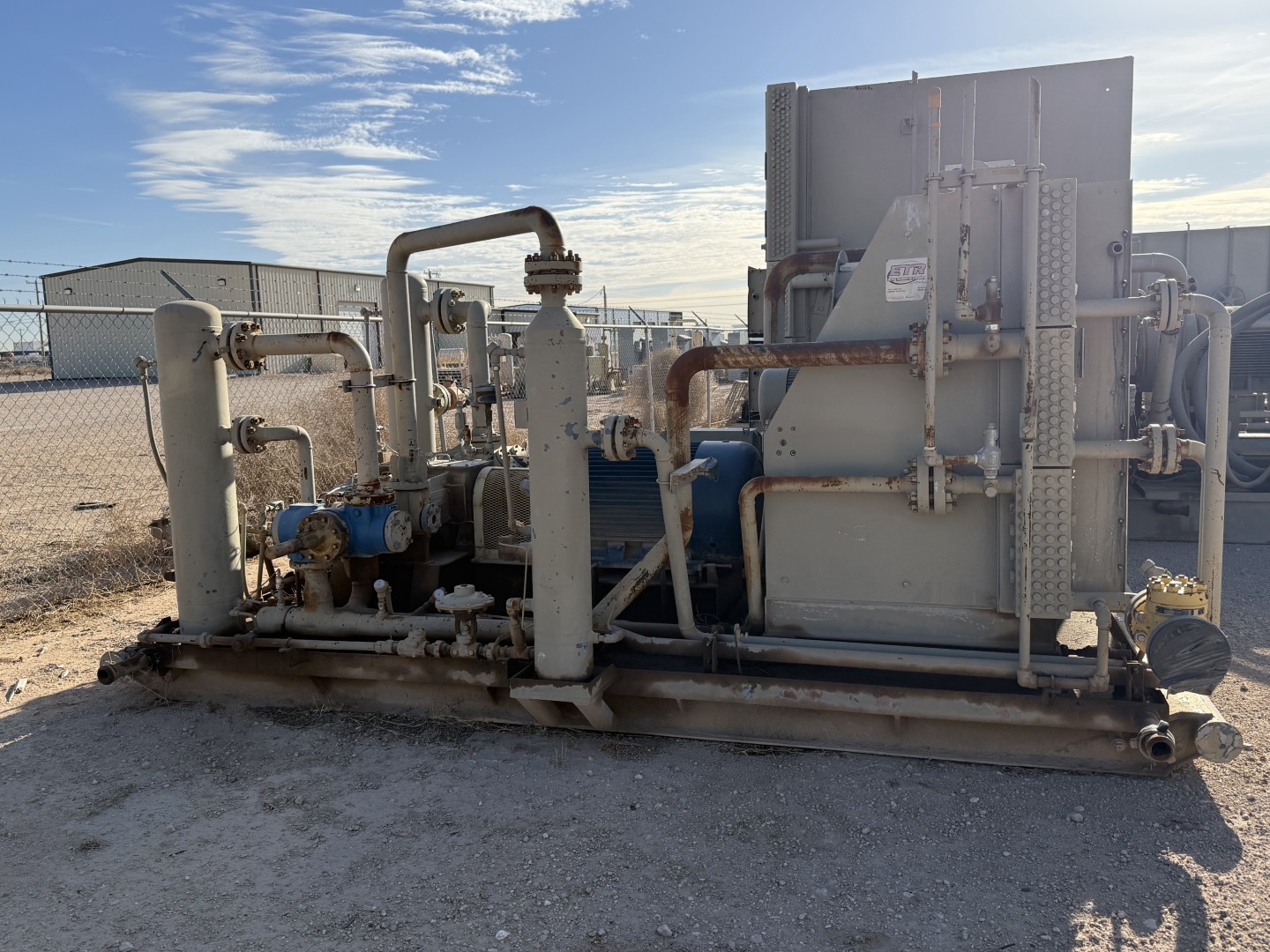

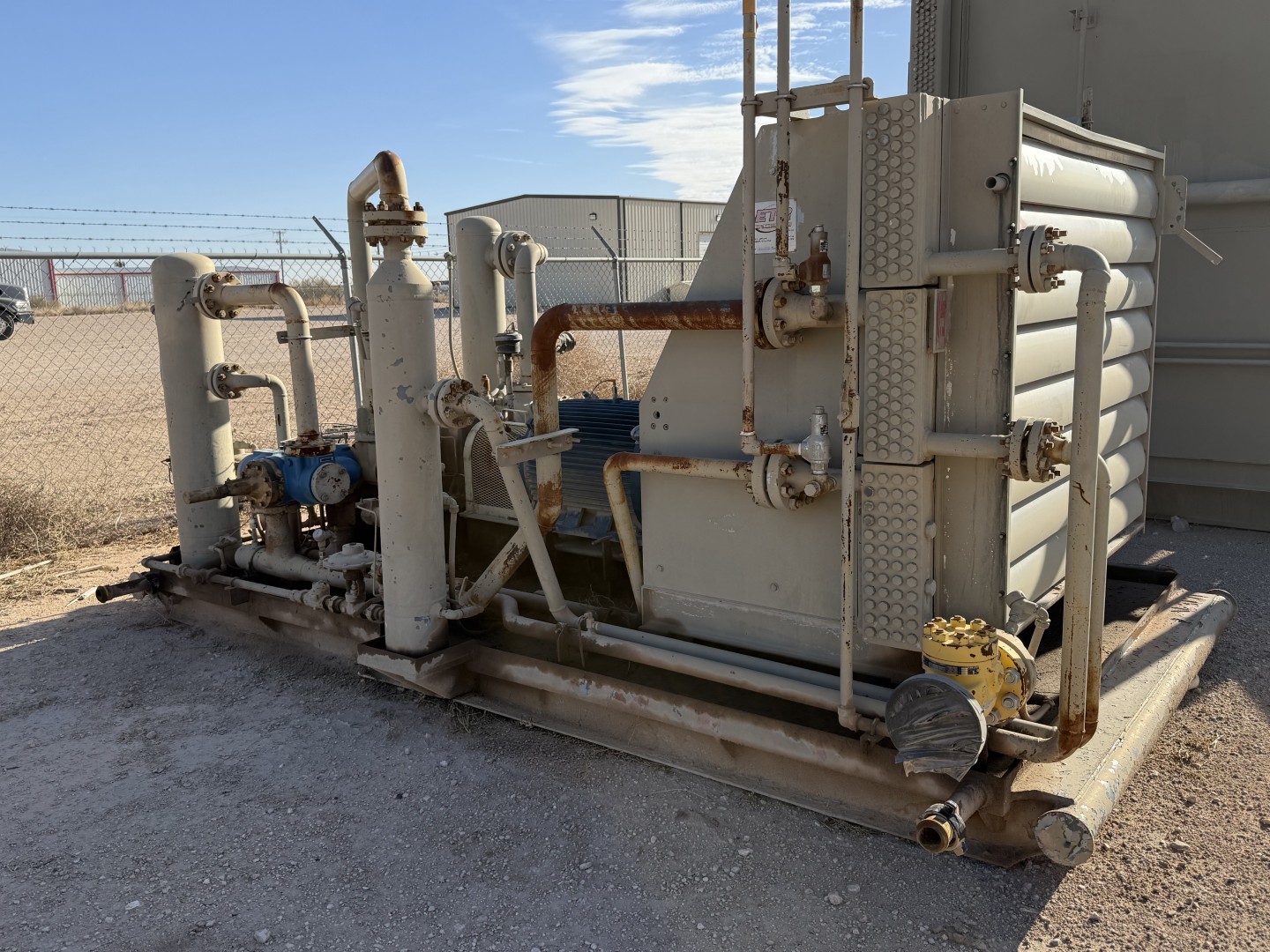

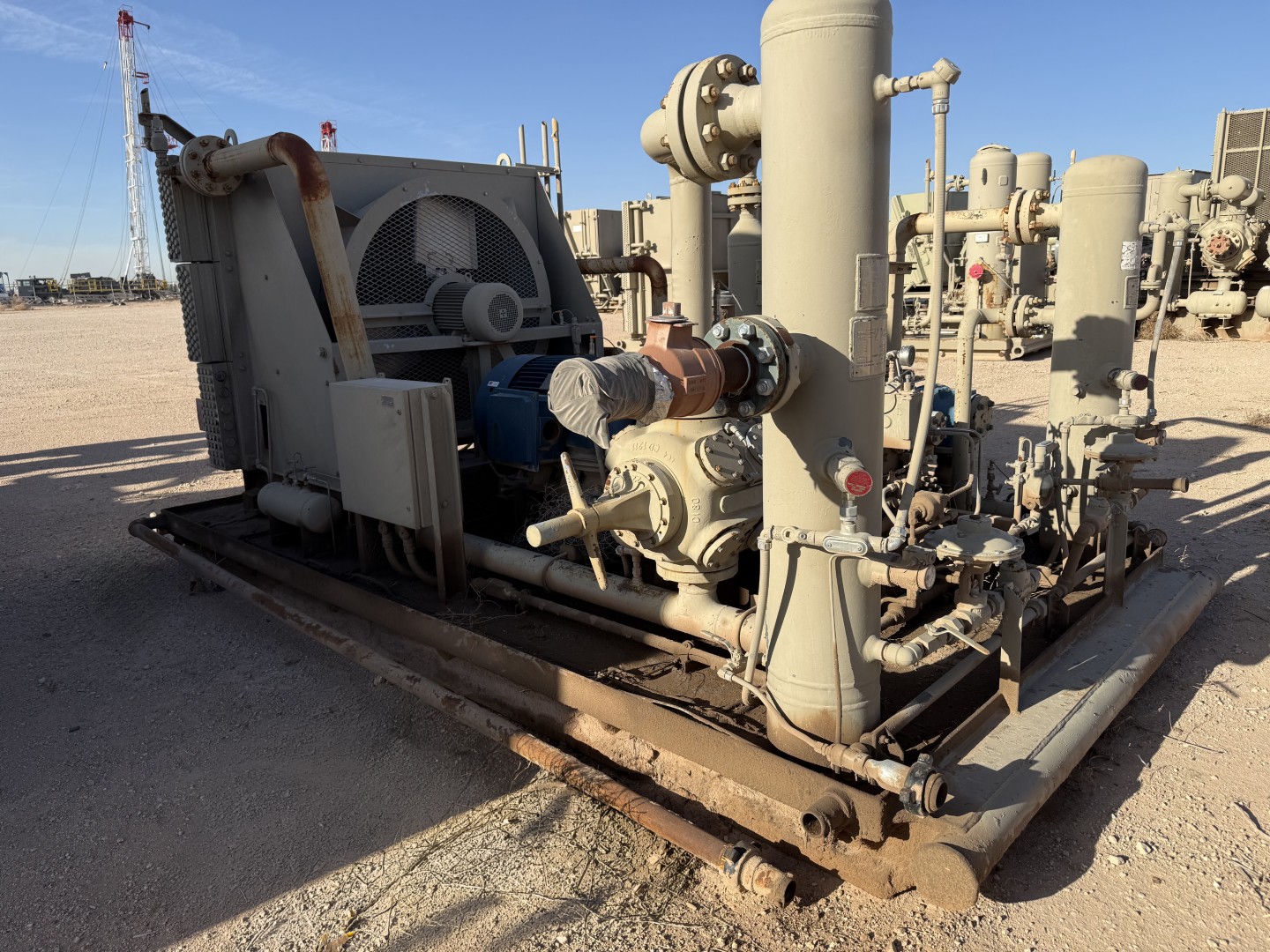

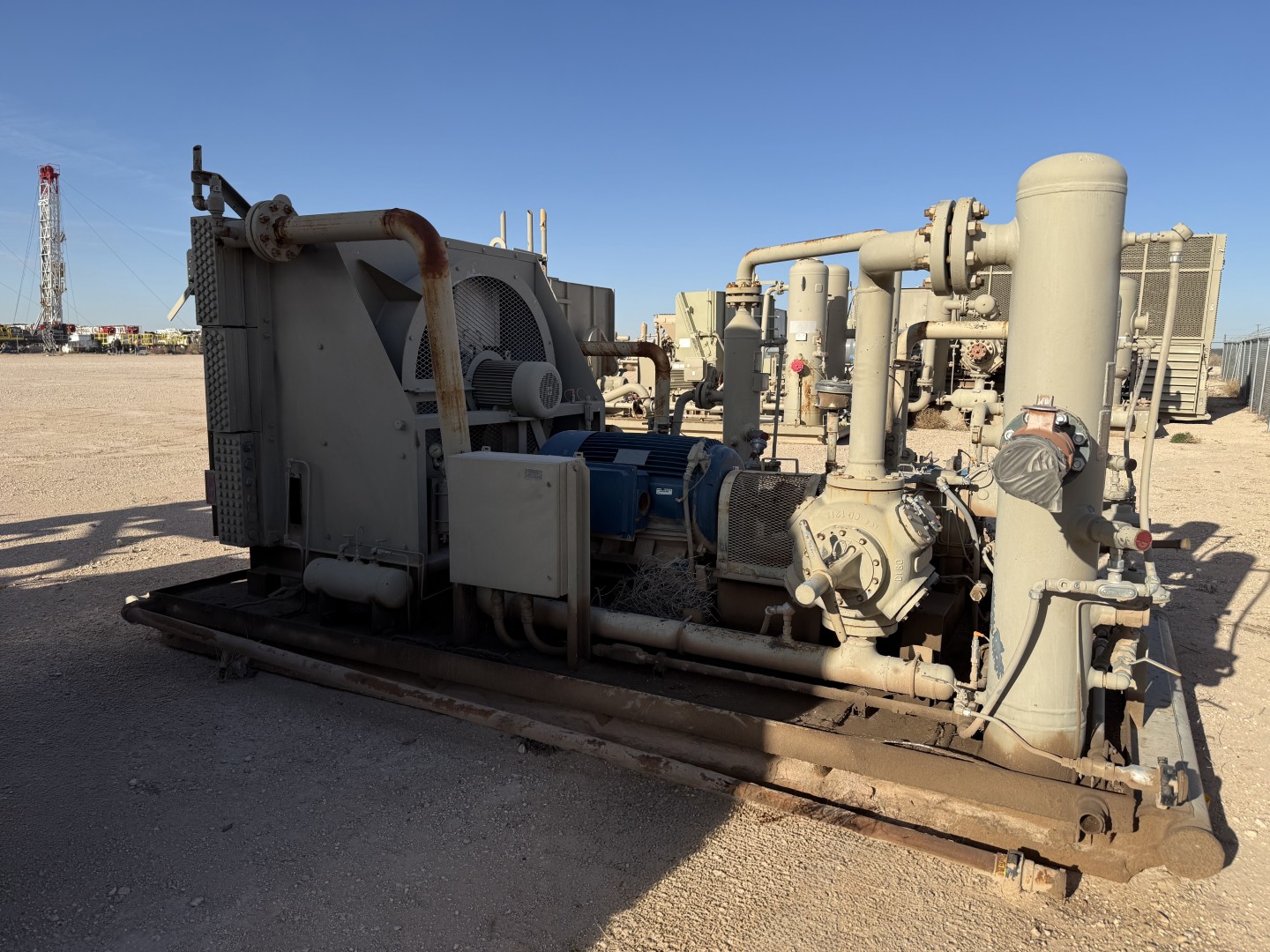

This electric compressor was packaged in 2015 and is a great gas lift unit. With high pressure P10:P11 tandem cylinders and a 2500# aftercooler, this unit is flexible enough to work in many applications.
Product Details
Driver
North American Electric
200HP @ 1790RPM
Frame 447T 3Phase/60Hz/220V
Cooler
East Texas Radiator
S/N: 1097 2192 008
Built: 2014
Compressor
Ariel JGQ/2
S/N: F-51888
Mfg: Oct 2015
R/L: 20,000
Cylinders
7.5” JG (S/N: C-184081) 500# w/ VVCP
5.125″ P10-HE (S/N: C-253420) 1200# w/ VVCP
3.25” P11-CE (S/N: C-184187) 1800#
Scrubber Information
| Diameter | MAWP | S/N | Year | Mfg | |
| Suction | 10″ | 1000# | FT-2120-17 | 2007 | Fabtech |
| 1st Interstage | 10″ | 1250# | FG102384-01-01 | 2008 | RCH Industries |
| 2nd Interstage | 8″ | 1250# | FT-2090-32 | 2007 | Fabtech |
Cooler Information
| MAWP | Temp | S/N | |
| IC1 | 645# | 350F | 1097 2192 008 A |
| IC2 | 1287# | 350F | 1097 2192 008 B |
| AC | 2500# | 350F | 1007 2192 003 C |
