200HP / H304 / 4-stage

Columbia, MS

Product Notes

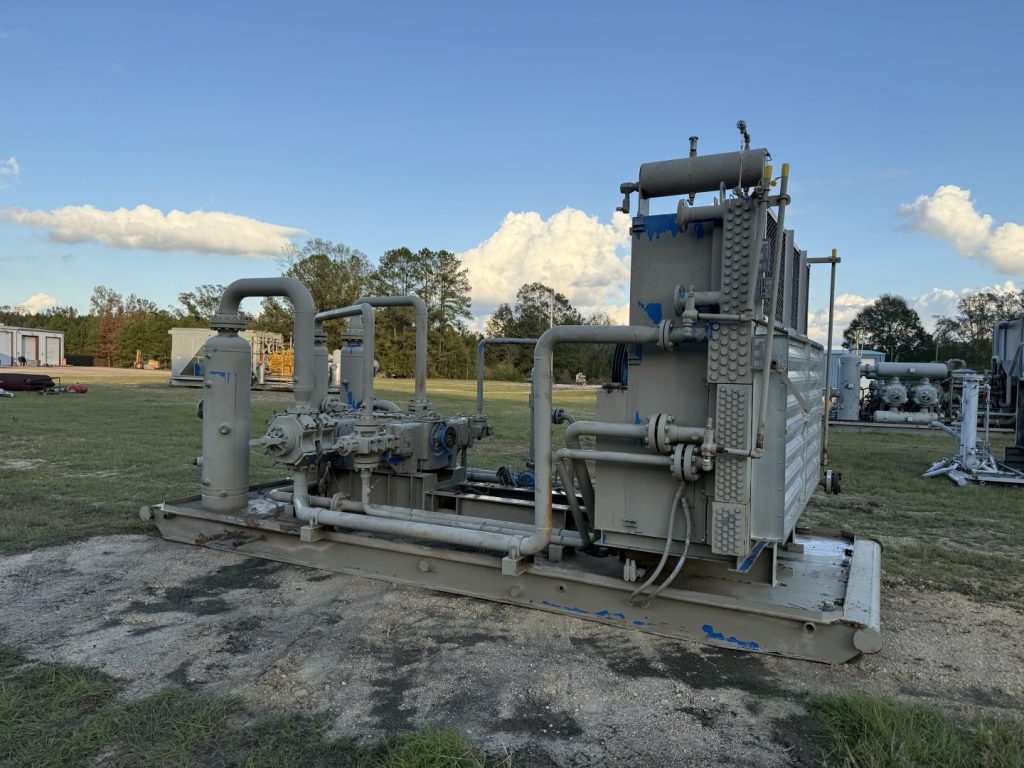

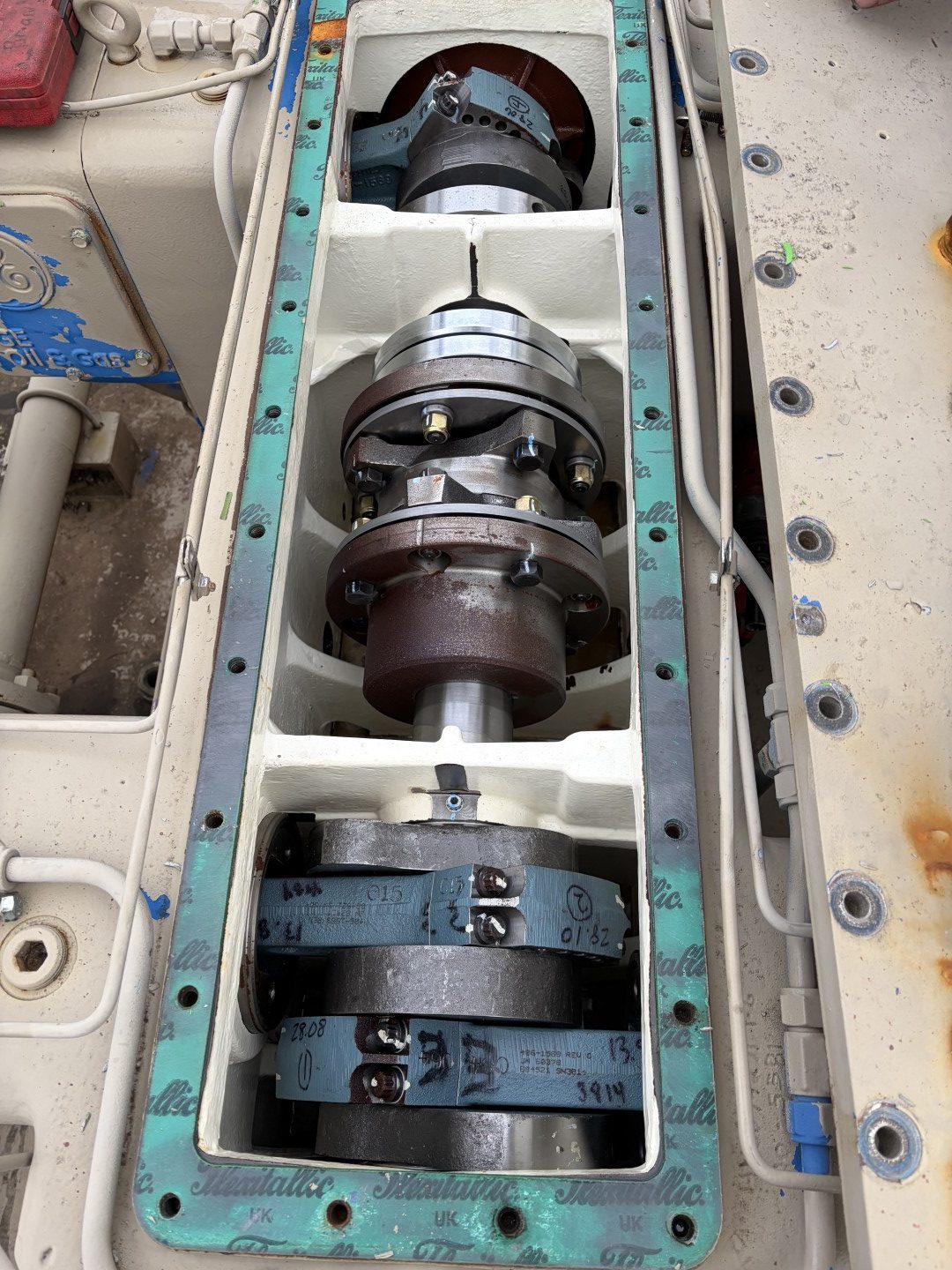

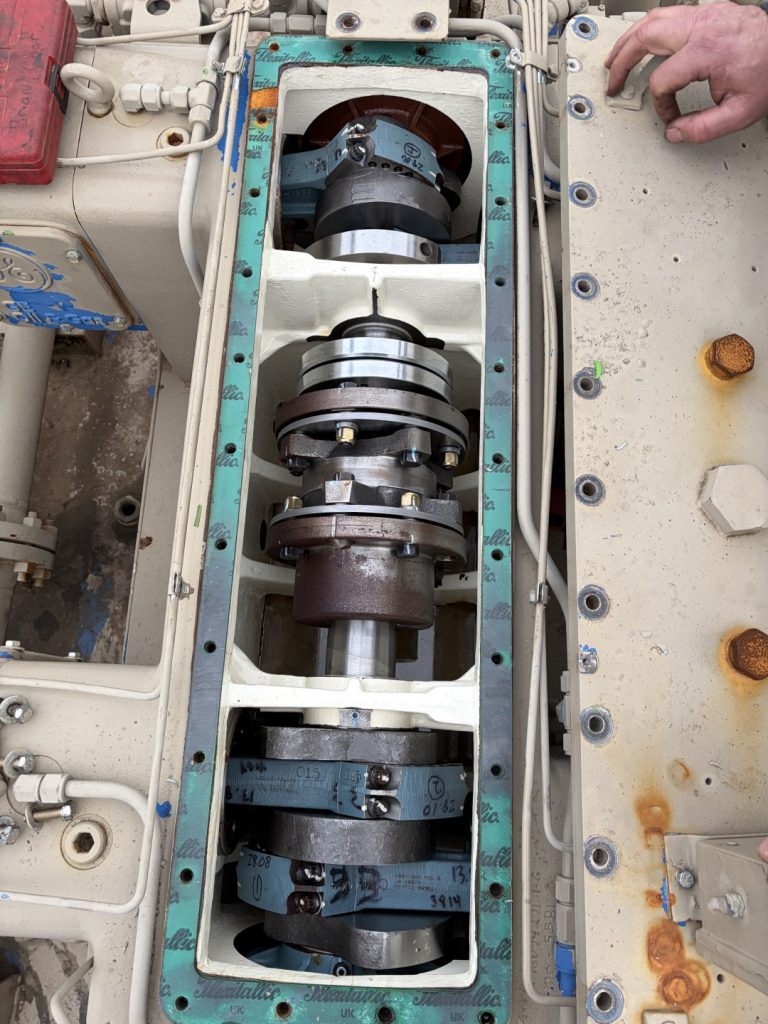

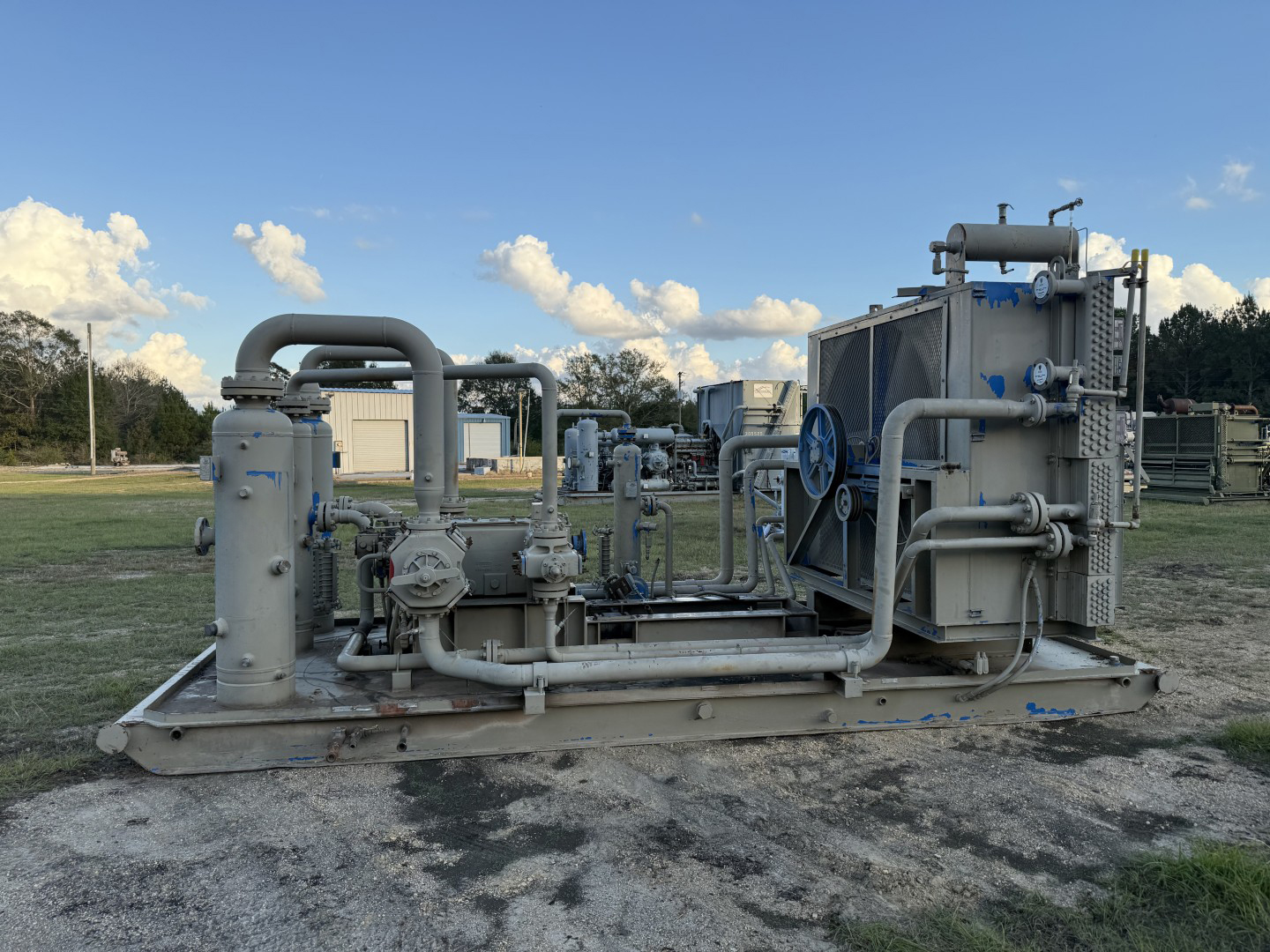

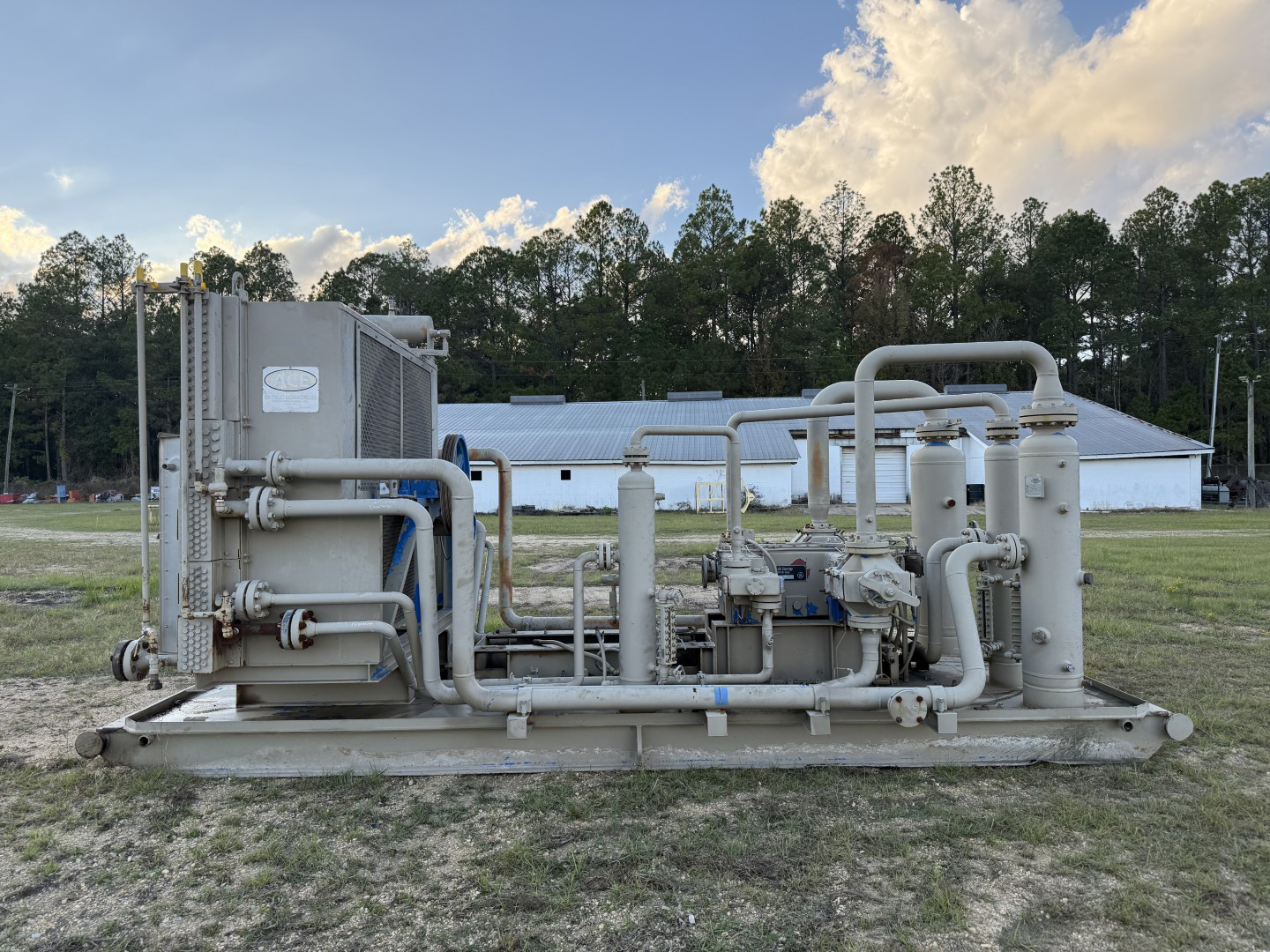

Unit was originally packaged with a Caterpillar G3406NA engine but it has been pulled. It can be rebuilt with a replacement engine or converted to an electric package if desired. Originally packaged in 2012, three cooler sections were changed out in 2020 to allow for higher discharge pressures. The compressor frame rolls freely 360 degrees.

Download Photos

Download Datasheet

Product Details

Driver

Caterpillar G3406NA
250HP Electric Motor

Cooler

Air Cooled Exchangers
Model: C72
S/N: 1207803
215#, 1440#, 1440#, 2200#

Compressor

GE/Gemini H304
S/N: HSR-006025
Date: 05/24/12
Rod Load: 20,000#

Cylinders

8.0” H-DA (S/N:101982-1-4) 500# w/ VVCP
6.0” H-DA (S/N: 081063-1-3) 500# w/ VVCP
3.5″ H-DA (S/N: 104994-1-6) 1250# w/ VVCP
2.5” H-DA (S/N: 077496-1-1) 1440#

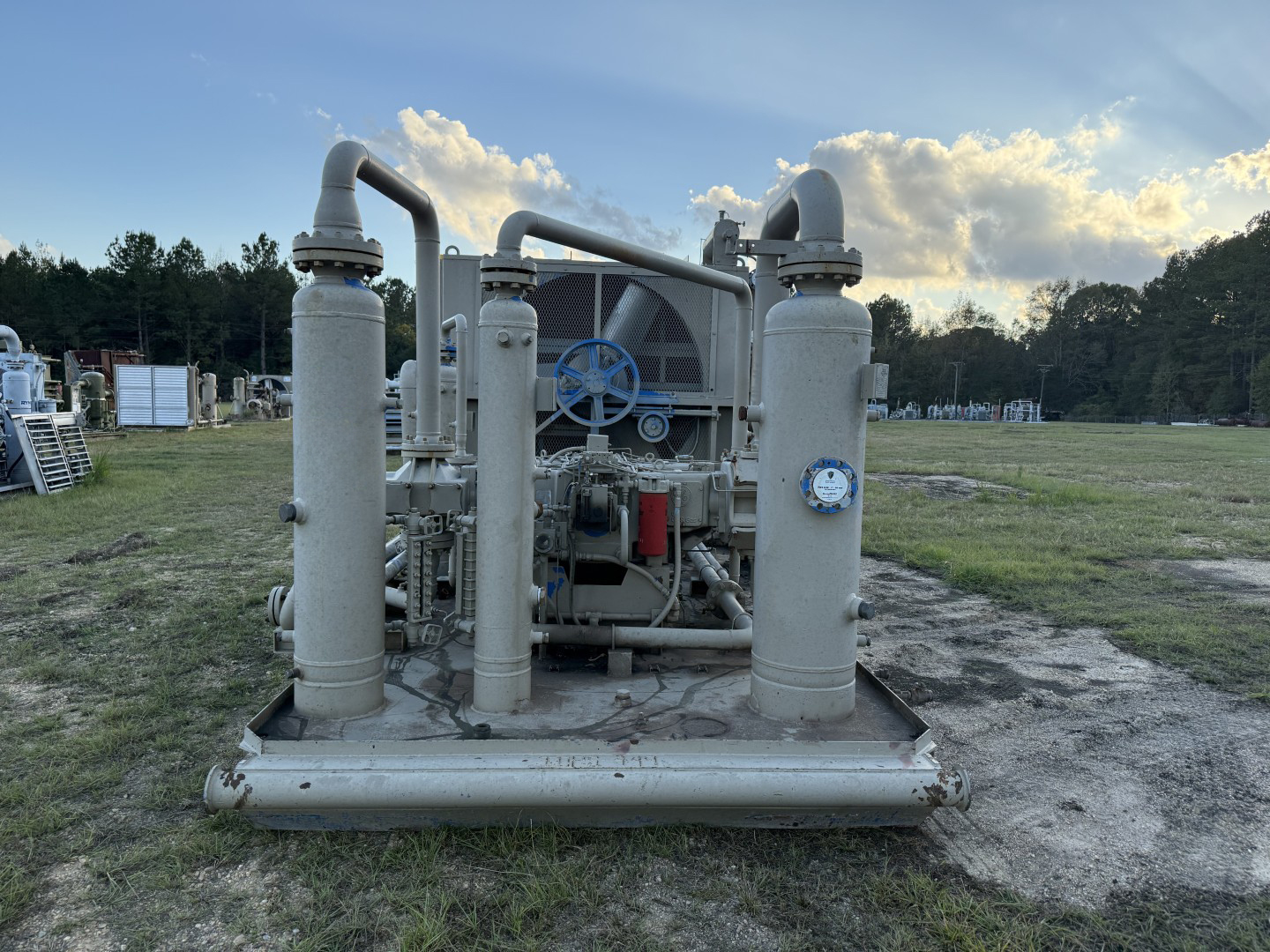

Scrubber Information

	Diameter	MAWP	S/N
Suction	16″	720#	15063
1st Interstage	12″	720#	15076
2nd Interstage	8″	1420#	15084
3rd Interstage	8″	1420#	15093
